Troubleshooting
Wine Cooler Not Holding Temperature?
Thermoelectric and compressor wine units fail in completely different ways. Ambient heat, a fouled condenser and a tired seal explain most drift we see.
Anyone can do this
No tools, no disassembly, and nothing that can void a warranty.
Covers these symptoms
- wine cooler not getting cold enough
- temperature keeps drifting up
- one zone works, the other does not
- running constantly but never reaching setpoint
- condensation inside the glass door
- wine cooler is too cold and freezing bottles
- cooler warm in summer, fine in winter
What you need
- Probe thermometer
- A bottle of water to use as a thermal reference
- Flashlight
- Vacuum with a brush attachment
- Dollar bill or a strip of paper
- Room thermometer
First, work out what kind of machine you have
Two completely different technologies get sold as wine coolers, and almost every diagnostic decision depends on which one is in your cabinet.
Compressor-driven units are refrigerators. A sealed system with a compressor, a condenser, an evaporator and a refrigerant charge, controlled to a wine-appropriate setpoint instead of a food-safe one. They can hold a large temperature difference below the room, they work in a hot space, and they cycle audibly. Essentially all serious built-in, undercounter and column wine storage is compressor-driven.
Thermoelectric units use the Peltier effect - a solid-state module that pumps heat from one face to the other when current flows through it, with a fan on each side. No compressor, no refrigerant, almost no vibration, very quiet. The trade-off is capacity: a thermoelectric module can only maintain a limited temperature difference below the ambient air, commonly in the region of 20 degrees F, and its performance collapses as the room gets warmer.
The serial plate settles it. A refrigerant type and a charge weight in grams means compressor. A wattage figure and nothing else means thermoelectric.
The ambient problem, and why it is bigger here than elsewhere
A wine cooler does not create cold. It moves heat out of the cabinet and into the room, and how hard that is depends on the room.
Manufacturers assign climate ratings for exactly this reason - the familiar SN, N, ST and T classes describe the ambient range a unit is designed to operate across. Put an appliance rated for a temperate range into a space that regularly exceeds it and it will underperform, and the label is not there for decoration.
In Northeast Florida this bites in specific places:
- Garages. An uninsulated garage here runs well above outdoor air on a summer afternoon. A thermoelectric unit in a garage will not hold 55 degrees from roughly May to October, and a compressor unit will run nearly continuously to do it.
- Butler’s pantries and closed wine closets. A compressor unit rejects heat into the room it sits in. Shut it inside a small unventilated space and it warms its own environment until it can no longer keep up.
- Sunlit walls and west-facing kitchens. Radiant gain on a cabinet face is real, and it is worst in exactly the afternoon hours when the room is already warmest.
- Older houses with retrofitted cabinetry. In Riverside, Avondale, Old Ortega, San Marco and Old Mandarin, wine units are frequently fitted into cabinetry adapted from something else, with no thought given to the air path the appliance needs.
If your cooler is fine in January and struggling in August, ambient is your answer and no part will fix it.
Built-in versus freestanding is not a styling choice
This is the single most common installation error we find on wine equipment.
A freestanding unit rejects heat from its back and sides. It needs clearance on all sides and above. Slide one into a cabinet cutout so the front is flush, and the heat it just removed from the cabinet has nowhere to go. It goes back in. The unit runs continuously, never reaches setpoint, and its compressor lives a short life.
A built-in unit is designed with the condenser and its fan behind a front grille, drawing air in and pushing it out at the bottom front, so it can sit fully enclosed. That grille is not decorative and it must never be covered. We regularly find a cabinetmaker’s toe-kick trim run flush across the front of an undercounter wine unit, and the appliance has been quietly suffocating ever since.
If you are not sure which yours is, the specification sheet will state required clearances explicitly. If it asks for two or three inches at the rear and sides, it is freestanding and it is currently in the wrong hole.
Cleaning the condenser is not optional in this climate
A condenser rejects heat by passing room air over fins. Dust, pet hair and kitchen grease bind to those fins and insulate them, and an insulated condenser cannot reject heat, so head pressure rises, capacity falls, and the cabinet drifts warm while the compressor runs longer and longer.
Twice a year is a reasonable interval for most households, more with pets. On the coast - 32082, 32250, 32266, 32233 and 32084 - go more often. Salt in the air corrodes aluminium fins and helps dust adhere to them, and a coastal condenser fouls visibly faster than one ten miles inland.
The procedure is simple: switch the unit off, remove or open the grille, vacuum the fins, brush gently along the direction of the fins rather than across them, and vacuum again. Bent fins do not un-bend, so brush with the grain.
Reading the symptom pattern
| What you are seeing | Most likely cause |
|---|---|
| Warm every summer, fine in winter | Ambient exceeds the unit’s rating, or the location is wrong |
| Runs constantly, never reaches setpoint | Condenser fouled, freestanding unit built in, or seal leaking |
| Drifts warm gradually over months | Condenser fouling, or a seal that has hardened with age |
| Went warm suddenly | Fan, sensor, control, or on a compressor unit the sealed system |
| One zone warm, other zone correct | That zone’s fan, damper, sensor or heater |
| Condensation on or in the glass | Door seal leaking, or a failed sealed glazing unit |
| Freezing bottles | Setpoint or units error, sensor drift, or a damper stuck open |
Measure it the way the appliance does
An air thermometer inside a wine cabinet gives you a number that swings every time the fan runs, and it will not match the display. That is normal, and chasing it wastes an afternoon.
Wine coolers are controlled around bottle temperature, because bottles are the thermal mass that matters and because that is what protects the wine. Measure the same way: put a probe into a bottle of water, or tape it firmly to a full bottle in the middle of the cabinet, and read it after several hours. That number is meaningful and it is the one to quote when you call anybody.
While you are at it, take the room temperature at the same time, at the warmest part of the day. The difference between those two numbers - not the cabinet number alone - is what tells a technician whether the appliance is failing or simply being asked for more than its design can deliver.
Vibration, light and the things that damage wine besides heat
Worth knowing while you have the door open. Compressor units vibrate, which is why serious wine cabinets isolate the compressor and use damped racking; a unit that has developed a new buzz or rattle may be transmitting far more vibration into the bottles than it should. Glass doors on quality units are treated or tinted against ultraviolet light, and a cabinet in direct sun with clear glass will age its contents faster than the temperature alone explains. And humidity that is too low dries corks, which is why some cabinets manage humidity deliberately rather than dehumidifying as hard as they can.
None of that fixes a temperature problem. All of it is part of why a wine cooler is not simply a small refrigerator.
When to call
Call if the cabinet runs continuously and still misses setpoint after the condenser is clean and the clearances are right, if it went warm suddenly, if one zone has stopped while the other works, if bottles are freezing, if the glazing has fogged internally, or if there is a fault code on the display. Leave the code up rather than clearing it.
Sealed system work on a compressor wine unit means handling refrigerant, which under 40 CFR Part 82 Subpart F requires EPA Section 608 certification. Our technicians hold it.
We are an independent appliance repair company based in Fruit Cove, covering St. Johns, Duval and Clay counties. Diagnostic is a flat $129, credited toward the repair when you approve the work. Call +1 (904) 977-8701, Monday to Friday 8am-6pm, Saturday 9am-4pm.
Step by step
- 01
Find out which kind of cooler you own
Look at the serial plate and listen. A compressor unit lists a refrigerant type and a charge weight, and it cycles audibly. A thermoelectric unit lists only a wattage, runs a fan continuously, and has no compressor sound at all. Everything below branches on this, because the two designs fail for entirely different reasons.
- 02
Measure the room, not just the cabinet
Put a thermometer next to the unit and read the ambient temperature at the warmest part of the day. Wine coolers are rated for a climate range, and a thermoelectric design in particular can typically only pull the cabinet a limited number of degrees below the room. A garage, a butler's pantry with the door shut, or a sunlit wall in August will beat any of them.
- 03
Use a bottle of water as your thermometer, not the air
Stand a bottle of water in the cabinet with a probe in it, or tape the probe to a full bottle, and read it after several hours. Air temperature inside a wine cooler swings constantly and means very little. The bottles are the thermal mass that actually matters, and manufacturers set their controls around them, which is why the display and an air thermometer rarely agree.
- 04
Clean the condenser and check the vent path
On a compressor unit, find the grille - almost always at the bottom front on a built-in, sometimes at the rear on a freestanding one - and vacuum the fins, brush along their direction, then vacuum again. A built-in unit exhausts through that front grille, so anything blocking it, including a decorative toe-kick trim run flush across the front, will strangle it.
Switch the unit off at its control or the breaker before brushing near a condenser fan.
- 05
Confirm a freestanding unit was not installed as a built-in
A freestanding wine cooler rejects its heat out of the back and sides and needs air all around it. Push one into a cabinet cutout and it will run continuously and never reach setpoint, especially in summer. This is one of the most common causes we find and it is an installation error, not a fault.
- 06

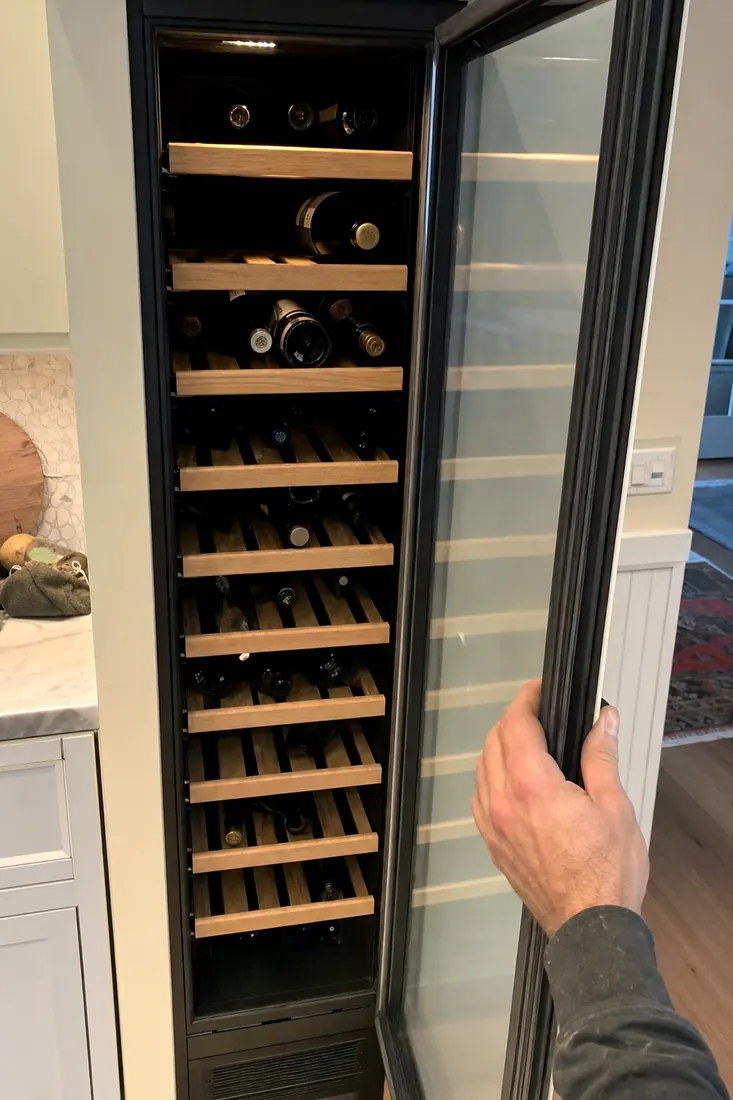

Test the door seal and the glass
Close the door on a strip of paper at points all the way around and pull. Any place it slides free without drag is leaking. Then look at the glass itself - persistent condensation or fogging between panes means the sealed glazing unit has failed, and that is a genuine heat path into the cabinet, not just a cosmetic problem.
- 07
Reduce the load and the door openings for 24 hours
Take out anything warm that was recently added, close the door, and leave it alone for a full day. A cooler loaded with two cases of room-temperature wine has a real job to do and can take a day or more to bring it down. Judging it at hour three, with the door being opened to check, is how a healthy unit gets declared broken.
Questions this raises
How do I tell whether mine is thermoelectric or compressor-driven?
Check the serial plate. A compressor unit names a refrigerant such as R600a or R134a and gives a charge in grams; a thermoelectric unit gives only a wattage. You can also listen - a compressor cycles on and off with an audible hum and the cabinet sides feel warm near the back, while a thermoelectric unit runs a fan continuously and is nearly silent. Most true built-in and undercounter luxury wine storage is compressor-driven.
Why does my thermoelectric cooler work all winter and fail every summer?
Because thermoelectric cooling can only maintain a limited temperature difference below the surrounding room, typically in the region of 20 degrees F depending on the design and the load. At a 70 degree room, a 55 degree setpoint is comfortably within reach. At an 88 degree room in an unconditioned space in August, that same unit physically cannot reach 55 no matter how long it runs. That is not a fault, it is the technology, and the fix is a cooler location or a compressor unit.
Is a two or three degree drift actually a problem for the wine?
Not really, on its own. Wine cares far more about stability and about avoiding heat spikes than about hitting exactly 55 degrees, and the thermal mass of a full bottle smooths out short swings that would look alarming on a display. What does harm wine is sustained temperatures well above the mid-sixties, repeated large swings, and vibration. A cooler holding 57 instead of 55 is fine; one drifting to 68 every afternoon is not.
Both zones used to work and now only the top one does. What failed?
It depends on how the second zone is produced. Some dual-zone cabinets have two entirely separate cooling systems, some use one system with a damper or a second fan splitting the cold air, and some rely on natural stratification with a small heater managing the warmer zone. A single dead zone points at that zone's fan, damper, sensor or heater rather than at the refrigeration itself, since a failed compressor would take both zones with it.
Why is there condensation inside the glass door?
Humid room air is meeting cold glass. In Jacksonville, where indoor humidity stays high for much of the year, this happens most often when the door seal is leaking, when the door is opened frequently, or when the sealed glazing unit in the door has failed and lost its insulating gap. Persistent fogging between the panes is the failed-glazing case, and it also means the cabinet is gaining heat through the door continuously.
My cooler is freezing bottles. Is that the same problem?
Same family, opposite direction, and it needs attention just as urgently because a frozen bottle can push its cork or crack. The usual causes are a setpoint entered in the wrong units or the wrong zone, a temperature sensor that has drifted or lost its connection, a control stuck calling for cooling, or on a dual-zone cabinet a damper stuck fully open. Move the bottles out of the coldest area and have it looked at.
